1.Functional ZigBee Smart Human Presence Sensor:Featured as human presence,human static,human micro motion and human movement motion detection to detect the presence or absence of people in the area,even to detect the static state such as personnel sleeping accurately with mmWave Radar Detection featured.
2.Perceived Light Intensity for Smart&Scene Linkage:Illuminance monitor in Tuya Smart APP enables its smart feature as smart scene linkage with other smart devices,especially your house lights to ON/OFF automatically as the brightness changes;Besides,you can intelligently linkage the sensor to other smart home devices for home automation.
3.ZigBee Hub as Control Center:Tuya ZigBee gateway is required for this ZigBee human presence sensor,performing as the center bridge for all Tuya ZigBee smart devices with extremely stable signal and a really good necessity for whole-house intelligence.(note:Tuya ZigBee hub is highly recommended for its wider compatibility than other hubs)
4.Advanced New Design with Multiple Settings:Set the sensitivity from 1-9 to your own need,together with minimum detect range as 0.00m and maximum as 9.5m for flexible detection demand.Meanwhile,it is designed with hold time set as 0-1500s and detection latency set as 0-10s to avoid irrelevant annoying movement and reduce false alarm rate.
Product Features
Applications of Inverters
Product Display






ZSS-QY-HPTECHNICAL SPECIFICATIONS
Model: ZSS-QY-HP
Wireless Technology: Zigbee
Work voltage: AC100V-250V
Work current: ≤70mA
Work temperature: -20℃ ~ +70℃
Sensitivity: 0-9 (Default 7)
Detect distance: 0~9m (Default distance 7 m)
Light sense: 0~2000Lux
Installation mode: Ceiling

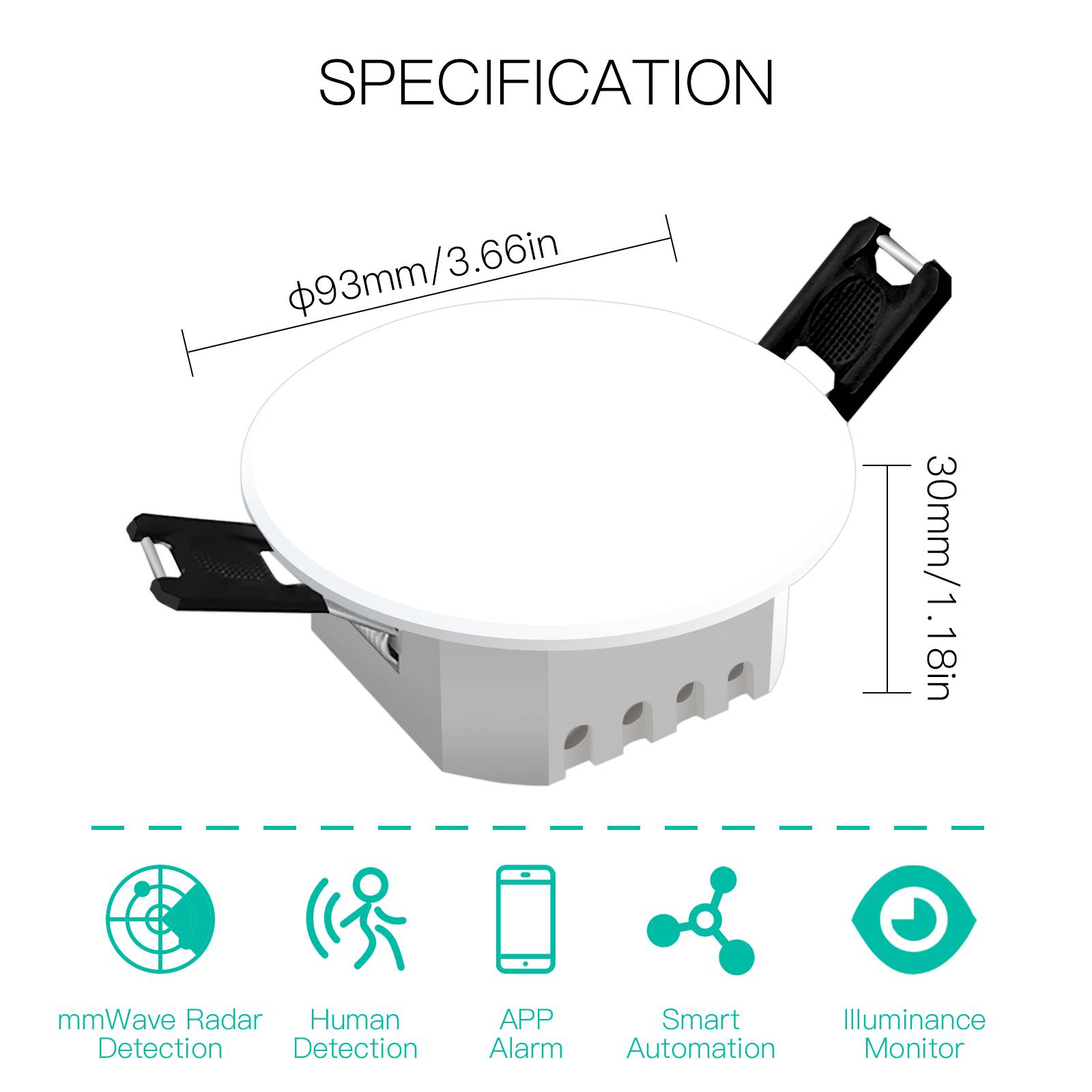

Product size: ∅93x30
Microwave operating frequency: 5.8GHz
Microwave transmitting power: 3-5dBm
Module Model: ZT3L Model
Max RF Power: +10dBm
Operating Frequency: 2.400-2.483GHz
